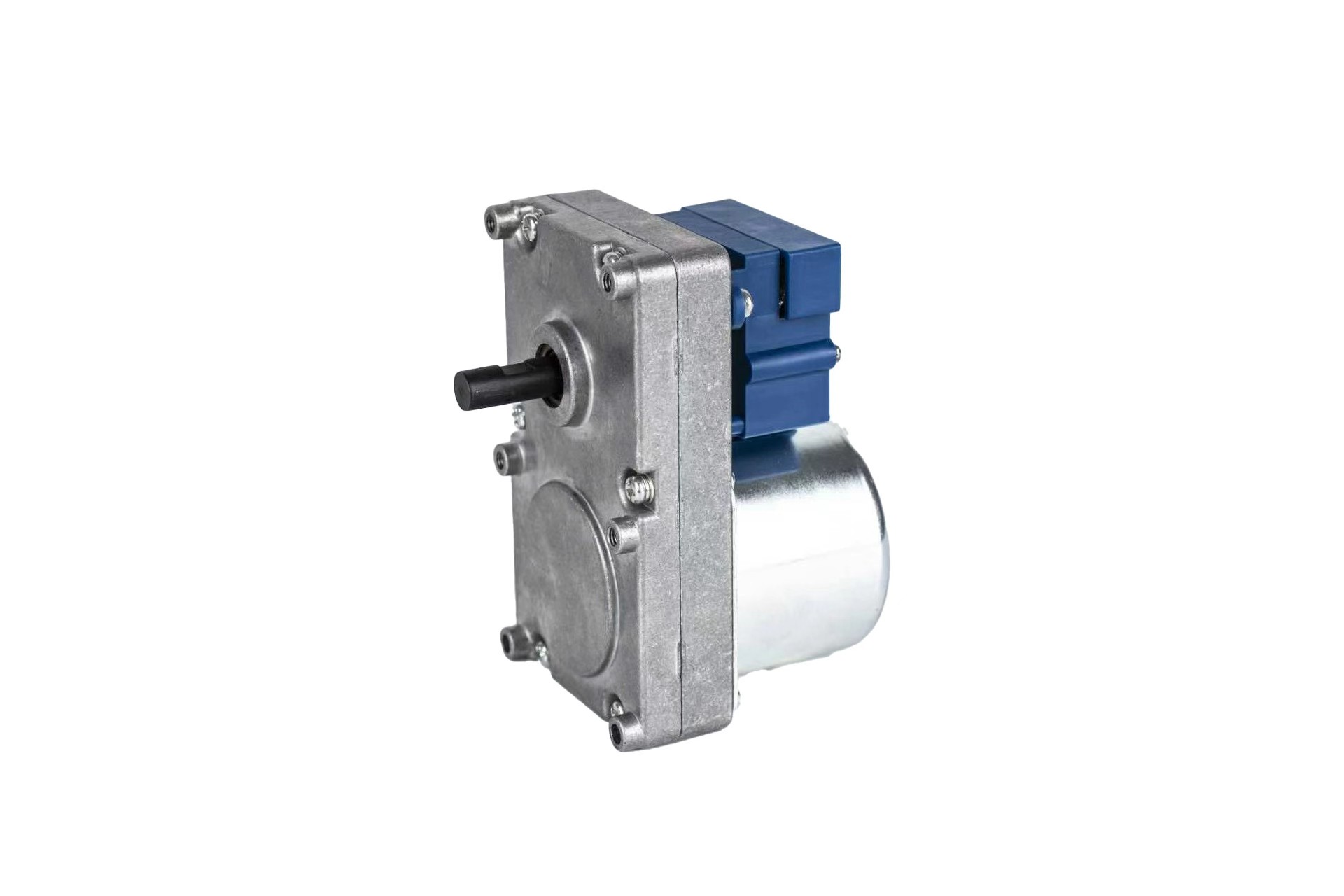

Designed specifically for pellet stoves, pellet fireplaces and biomass heating systems, this compact geared motor provides reliable and stable power for driving the pellet auger and automatic fuel feeding mechanism. It delivers smooth rotational output to help maintain consistent pellet feeding and stable fuel delivery during continuous heating operation.

With a compact and durable construction, the motor is well suited for integration into residential and commercial pellet heating equipment. The ADC12 aluminum housing, Class H insulation and low operating noise of approximately 45 dB provide a combination of durability, thermal resistance and quiet operation.

The motor supports CW/CCW rotation, offering greater flexibility for different auger and pellet feeder designs. With ETL, CE and UL approvals, it is suitable for OEM applications and replacement requirements in international pellet heating equipment markets.

Technical Data

Type	ZSM65-120-2RA
Nominal Voltage	V	220
Frequency	Hz	50
Input Power	W	18
Motor Speed	R.P.M	2
Torque	N.m	30
Wind Speed	m/s	N/A
Air Flow	m3/h	N/A
Sound Level	dB	45
Pressure	Pa	N/A
Insulation Level	Class H
Approval	ETL CE UL
Housing Material	ADC12
Direction	CW/CCW
Lead Time	Week	4
Weight	Kg	1.05
